Gauge Size
151-1/2" (6,000 psi max)
202" (10,000 psi max)
252-1/2" (15,000 psi max)
404" (15,000 psi max)
Product page
NOSHOK

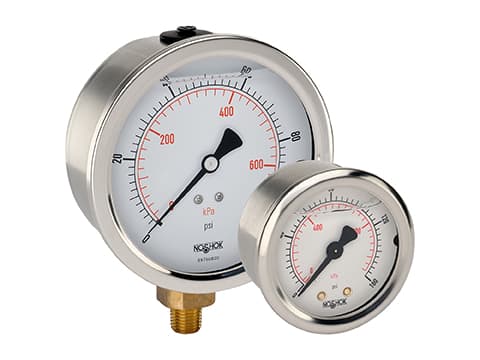

900 Series ABS & Stainless Steel Liquid Filled Pressure Gauges
The NOSHOK 900 Series Liquid Filled Pressure Gauges are engineered for demanding environments where severe pulsation, mechanical vibration, and pressure spikes occur. Featuring glycerin liquid filling that lubricates the movement and dampens pointer oscillation, these gauges are offered with impact-resistant ABS or durable 304 Stainless Steel cases in 1-1/2", 2", 2-1/2", and 4" dial sizes with vacuum and positive pressure ranges up to 15,000 psi.
High quality liquid filled gauge designed for high pulsation and vibration applications
Vacuum and compound ranges through 0 psi to 15,000 psi (also available in bar scales up to 1,000 bar)
1-1/2", 2", 2-1/2", and 4" dial gauge sizes
Impact-resistant ABS case with relief plug or corrosion-resistant 304 Stainless Steel case
Ready for quotationShare your range, connection and case requirement.
Talk to ATHApplicationsHydraulics & pneumatics, mobile construction equipment, automotive test stands, pumps, compressors, transportation, power generation, and water systems
Gauge sizes1-1/2" (40 mm), 2" (50 mm), 2-1/2" (63 mm), 4" (100 mm)
Accuracy±1.0% FS (4"), ±1.6% FS (2" & 2-1/2"), ±2.5% FS (1-1/2")
Pressure rangesVacuum (-30 inHg to 0 psi), compound (-30 inHg to 300 psi), and positive pressure up to 15,000 psi / 1,000 bar
Case optionsABS plastic with relief plug (900/910) or 304 Stainless Steel (901/911)
Wetted materialsBrass socket and copper alloy Bourdon tube (coiled safety tube above 600 psi)
Fill liquidGlycerin standard (special low-temperature fills available)
Part number example25 - 901 - 100 - psi/bar - 1/4
Technical data
Selection and ordering reference
Configure dial size, case material, pressure range, scale unit, and mounting accessories for the NOSHOK 900 Series liquid filled gauges.
Dial sizes1-1/2", 2", 2-1/2", 4"
Accuracy±1.0% (4"), ±1.6% (2", 2-1/2"), ±2.5% (1-1/2")
Case materialABS Plastic or 304 Stainless Steel
Fill liquidGlycerin (GY40)
Pressure rangeVac to 15,000 psi (1,000 bar)
Case Types
900ABS Case, Liquid filled, Bottom connection
910ABS Case, Liquid filled, Back connection
901304 SS Case, Liquid filled, Bottom connection
911304 SS Case, Liquid filled, Back connection
Pressure Ranges
30vac-30 inHg to 0 psi
30/30-30 inHg to 30 psi
30/100-30 inHg to 100 psi
150 to 15 psi
300 to 30 psi
600 to 60 psi
1000 to 100 psi
1600 to 160 psi
2000 to 200 psi
3000 to 300 psi
4000 to 400 psi
6000 to 600 psi
10000 to 1,000 psi
15000 to 1,500 psi
20000 to 2,000 psi
30000 to 3,000 psi
50000 to 5,000 psi
60000 to 6,000 psi
100000 to 10,000 psi
150000 to 15,000 psi
Scale Options
psipsi single scale
psi/barpsi/bar dual scale
bar/psibar/psi dual scale
psi/kPapsi/kPa dual scale
psi/kg/cm²psi/kg/cm² dual scale
Connection Sizes
1/81/8" NPT male (15 size)
1/41/4" NPT male (20, 25, 40 size)
1/21/2" NPT male (40 size)
SSTSAE J1926-3: 7/16-20 adjustable
Options & Accessories
PMCSteel panel mount clamp
SPMC304SS panel mount clamp
SSFF304SS front flange
SSRF304SS rear flange
MIPMaximum indicating pointer
SPRed set pointer
SGSafety glass lens
BP3Brass orifice press fit 0.3 mm
BT5Brass threaded orifice 0.5 mm
BT8Brass threaded orifice 0.8 mm
Part number example
25 - 901 - 100 - psi/bar - 1/4
25Gauge size2-1/2" (63 mm)
901Case type304 SS case, bottom conn
100Pressure range0 to 100 psi
psi/barScaleDual scale psi/bar
1/4Connection size1/4" NPT male
Technical specifications
Pressure rangesVacuum through 0 psi to 15,000 psi (1,000 bar)
Accuracy±1.0% FS (4"), ±1.6% FS (2", 2-1/2"), ±2.5% FS (1-1/2")
Case & BezelImpact-resistant ABS or 304 Stainless Steel with polished bezel ring
Wetted materialsCopper alloy Bourdon tube and brass connection
Fill liquidGlycerin standard (low-temperature fill available)
Connections1/8" NPT, 1/4" NPT, 1/2" NPT, 7/16-20 SAE adjustable
Operating notes
Dynamic working pressure should not exceed 60% of full scale; static working pressure should not exceed 90% of full scale.
Glycerin liquid filling eliminates pointer flutter and extends service life in high-vibration applications.
Optional restrictors protect sensing elements from damaging fluid spikes and hydraulic hammer.
Product Description
The NOSHOK 900 Series liquid filled pressure gauges deliver dependable, steady readings in systems subjected to severe pump pulsations and mechanical machine vibrations. The glycerin fill protects internal movement gears from premature wear while suppressing pointer flutter.
Available in both impact-resistant ABS cases (with integral safety relief plug) and rugged 304 stainless steel cases with bottom or center back connections. Dial configurations include single psi scales as well as dual psi/bar, psi/kPa, and psi/kg/cm² scales.
Factory liquid filled with pure glycerin (GY40) for immediate vibration and pulsation absorption
Ultrasonically welded acrylic lens on ABS models; durable polycarbonate lens on stainless models
Brass and nylon movement with highly polished bearing surfaces for extended service life
Bottom connection and center back connection with optional panel mount clamps and front flanges
Safety relief plug prevents overpressurization of case enclosure
Ordering Information
Gauge sizes15 = 1-1/2" (max 6,000 psi), 20 = 2" (max 10,000 psi), 25 = 2-1/2", 40 = 4"
Case types900 = ABS bottom conn; 910 = ABS back conn; 901 = 304 SS bottom conn; 911 = 304 SS back conn
Pressure ranges30vac (-30 inHg to 0 psi), 30/15..30/300 compound, 15 psi to 15,000 psi, -1 to 0 bar, 1 to 1,000 bar
Scale optionspsi single scale, psi/kg/cm² dual, bar/psi dual, psi/kPa dual, psi/bar dual
Connection sizes1/8 = 1/8" NPT (15 size), 1/4 = 1/4" NPT (20, 25, 40 size), 1/2 = 1/2" NPT (40 size), SST = SAE J1926-3 7/16-20 adjustable
Options & AccessoriesPMC (Steel panel clamp), SPMC (304SS panel clamp), SSFF (304SS front flange), SSRF (304SS rear flange), MIP (Max pointer), SP (Red set pointer), SG (Safety glass), BP3 (Brass orifice 0.3mm), BT5/BT8 (Threaded orifice 0.5/0.8mm)
Part Number Example
Example25 - 901 - 100 - psi/bar - 1/4
Gauge size25 = 2-1/2" (63 mm)
Case type901 = 304 Stainless Steel case, liquid filled, bottom connection
Pressure range100 = 0 to 100 psi
Scalepsi/bar = Dual scale (psi primary, bar secondary)
Connection size1/4 = 1/4" NPT male, brass
Product Specifications
Pressure rangesVacuum and compound ranges through 0 psi to 15,000 psi (0 bar to 1,000 bar)
Accuracy1-1/2": ±2.5% FS; 2" & 2-1/2": ±1.6% FS; 4": ±1.0% FS
Temperature rangesMedia & Ambient: Glycerin fill -4°F to 140°F (-20°C to 60°C); Special fill -40°F to 140°F (-40°C to 60°C). Note: ±0.4% per 18°F (10°C) shift from calibration
Measuring elementUp to 600 psi: Copper alloy C-Type Bourdon tube; Above 600 psi: Coiled safety tube
Connections1/8" NPT (size 15), 1/4" NPT (sizes 20, 25, 40), 1/2" NPT (size 40), 7/16-20 SAE adjustable
Case & BezelABS plastic with safety relief plug or 304 Stainless Steel with polished bezel ring
MovementBrass and nylon with highly polished bearing surfaces
Window lensAcrylic (ABS case) or Polycarbonate (Stainless steel case)
Operating Notes
Working Pressure Limitations: Dynamic pressure should be limited to 60% of dial range; Static pressure (no sharp fluctuations) should be limited to 90% of dial range.
Temperature shift: For every 18°F (10°C) shift from calibration temperature, user can experience up to ±0.4% additional error.
Liquid filling effectively dampens mechanical shocks, extends component life, and prevents condensation inside the dial casing.
Cleaning for Oxygen Service (O2) is available only for special dry or Halocarbon filled gauges.
Panel mount clamps and front flanges allow clean, secure installation into control consoles and hydraulic power units.
Optional restrictor orifices (0.3 mm press fit, 0.5 mm or 0.8 mm threaded) provide additional protection against hydraulic water hammer and pulsation spikes.
