IDE20Intelligent Loop Powered 1/8 DIN Process Meter
Product page
NOSHOK

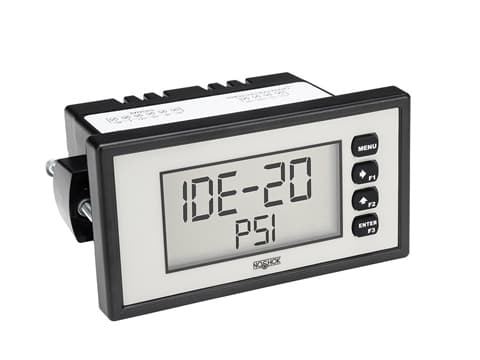

IDE20 Series Intelligent Loop Powered Panel Meter
The NOSHOK IDE20 Series Intelligent Loop-Powered Panel Meter is a high-precision 1/8 DIN digital process indicator engineered for demanding industrial process control, tank level monitoring, and flow rate calculation. Operating entirely from a standard 4 mA to 20 mA current loop without requiring auxiliary power lines, the IDE20 features an advanced dual-line display: a 5-digit, 0.7" (17.8 mm) upper display for primary process variables and an 8-digit, 0.4" (10.2 mm) alphanumeric lower display for engineering units, custom tags, or secondary metrics. Its ultra-high ±0.02% of span accuracy, 32-point custom strapping table linearization, square root extraction, and programmable exponent math functions deliver precise measurement even in non-linear tanks and open-channel flumes. The meter includes a loop-powered white backlight that automatically shifts to an attention-grabbing red during alarm states. With dual standard open-collector outputs, optional loop-powered solid-state relays, optional isolated 4-20 mA retransmission, an optional 20-segment bargraph, hazardous location (cULus) certifications, and included USB PC configuration software, the IDE20 sets the standard for modern loop-powered instrumentation.
1/8 DIN loop-powered digital process meter operating directly from standard 4 mA to 20 mA loops (no external DC power required)
Ultra-high precision ±0.02% of span ± 1 count accuracy with 25 PPM/°C low temperature drift
Dual-line LCD display: 5-digit upper readout (0.7" / 17.8 mm) and 8-digit alphanumeric lower readout (0.4" / 10.2 mm)
Loop-powered backlight with automatic color change to red under user-configured alarm conditions
Ready for quotationShare your range, connection and case requirement.
Talk to ATHInput signalSingle 4 mA to 20 mA DC current loop
Accuracy±0.02% of span ± 1 count
Display typeDual-line LCD; Top: 5 digits (0.7" / 17.8 mm); Bottom: 8 alphanumeric digits (0.4" / 10.2 mm)
BacklightLoop-powered; intensity varies with loop current; changes to red during alarm states
Voltage drop1.5 Vdc max without backlight; 4.5 Vdc max with loop-powered backlight
Input overload protectionOvercurrent protection up to 1 A max; overvoltage protection up to 30 Vdc max
Linearization & math2 to 32 points selectable, square root extraction, programmable exponent function
Enclosure rating1/8 DIN standard; NEMA 4X, IP65 (front panel); high-impact plastic housing
Outputs standard2 open collector outputs (user-assignable alarms / pulses)
Optional expansion cards2 Solid-state relays, isolated 4-20 mA analog retransmission, or combined relays + 4-20 mA
Temperature rangesGeneral: -40 °F to 167 °F (-40 °C to 75 °C); Hazardous: -40 °F to 158 °F (-40 °C to 70 °C)
Approvals & compliancecULus listed, hazardous location ratings, CE compliant (RFI, EMI, ESD suppression)
Technical data
Selection and ordering reference
Configure location classification, display format (decimal or height in ft/in with bargraph), and output option cards for the NOSHOK IDE20 Series Intelligent Panel Meter.
Input signal4-20 mA Loop Powered
Accuracy±0.02% of Span
DisplayDual-Line LCD + Red Alarm
Enclosure1/8 DIN, NEMA 4X / IP65
Linearization32-Point / Square Root
OutputsRelays / 4-20mA Retransmit
Location Ratings
GGeneral location rated
HHazardous location rated (cULus Class I, II, III Div 1/2)
Display Type
DDecimal Display (5-digit top, 8-digit bottom)
DBDecimal Display with 20-segment bargraph
HBHeight Display (Feet & Inches) with 20-segment bargraph
Option Cards
02 Open Collector outputs (standard)
12 Open Collectors & 2 Solid-State Relays
22 Open Collectors & Isolated 4-20 mA Analog Output
32 Open Collectors, 2 Solid-State Relays & 4-20 mA Output
Part number example
IDE20-G-D-1
IDE20SeriesLoop-powered panel meter
GLocationGeneral location rated
DDisplayDecimal dual display
1Option2 Open collectors & 2 SS relays
Technical specifications
Power supplyLoop-powered (no external DC/AC needed)
Measurement error±0.02% of span ± 1 count
Voltage drop1.5 Vdc (no light) / 4.5 Vdc (with light)
Display layoutTop 5-digit (0.7"), Bottom 8-char (0.4")
Front panel ratingNEMA 4X / IP65 sealed
Configuration4 Front buttons + USB PC software
Operating notes
Powered entirely by the 4-20 mA signal loop with minimal voltage burden.
Automatic red backlighting visually indicates alarm and threshold violations across the plant floor.
32-point strapping and square root functions allow precise non-linear volume and flow calculation.
Product Description
The NOSHOK IDE20 Series Intelligent Loop-Powered Panel Meter provides clear, localized process visibility and advanced alarm management in control rooms, local panel boards, and field junction enclosures. Because the meter draws its operating current and backlighting directly from the 4-20 mA transmitter loop, installation is simplified by eliminating the need for dedicated AC/DC power supplies and secondary wiring.
Equipped with a powerful mathematical coprocessor, the IDE20 easily handles complex process conversions including round horizontal tank volume strapping via up to 32 calibration points, differential pressure flow calculation via square root extraction, and open-channel weir flow formulas. The dual-line display provides simultaneous viewing of the primary process value (such as Gallons, PSI, or Height in Feet & Inches) alongside engineering units, totalizers, or custom process identifiers.
True 2-wire loop-powered operation eliminates field power cabling costs
High-contrast display with red alarm backlighting alerts operators instantly across noisy plant floors
Onboard 32-point strapping table provides accurate volume readout in irregular or horizontal cylindrical vessels
Available with solid-state relays for direct on/off pump alternation, high-level shut-off, or local horn activation
Complies with strict Class I, Division 1 and 2 hazardous location requirements for oil & gas and chemical processing
Ordering Information & Options
SeriesIDE20 (Intelligent Loop-Powered 1/8 DIN Panel Meter)
Location RatingsG = General location rated; H = Hazardous location rated (cULus)
Display Type OptionsD = Decimal Display; DB = Decimal Display with 20-segment bargraph; HB = Height Display (Ft & In) with bargraph
Option Card 02 Open Collector outputs (standard)
Option Card 12 Open Collectors & 2 Loop-Powered Solid-State Relays
Option Card 22 Open Collectors & Isolated 4-20 mA Analog Output
Option Card 32 Open Collectors, 2 Solid-State Relays & Isolated 4-20 mA Analog Output
Included AccessoriesUSB programming cable and PC configuration software
Application Highlights
Tank Level & StrappingCalculates true liquid volume in horizontal tanks with dished ends using 32-point linear interpolation
Pump Alternation & AlarmsControls dual pump lead/lag switching and high/low level emergency trips via solid-state relays
Flow Rate & TotalizingPerforms square root extraction on DP flow meters to display instantaneous rate and loop-retransmitted signal
Hazardous Plant PanelsMonitors remote hydrostatic or radar level transmitters inside Class I, Div 1/2 petrochemical environments
Product Specifications
Input Range4.000 mA to 20.000 mA DC
Measurement Accuracy±0.02% of full scale span ± 1 count
Display ConfigurationUpper: 5 digits (0.7" height); Lower: 8 alphanumeric characters (0.4" height)
Backlight OperationLoop powered; Normal state: White/Greenish; Alarm state: Red backlighting
Loop Voltage Burden1.5 Vdc max (without backlight); 4.5 Vdc max (with backlight enabled)
Update Rate1 update/sec at ambient > -10 °C; adjustable digital filter 1 s to 16 s
Front Panel SealingNEMA 4X, IP65 watertight and dust-tight seal
Operating Temperature-40 °F to 167 °F (-40 °C to 75 °C)
Operating & Configuration Notes
USB Configuration Utility: The IDE20 is supplied with intuitive PC software allowing operators to configure input scaling, custom engineering units, 32-point strapping curves, and relay alarm trip points via a standard USB connection.
Loop Burden Considerations: Ensure the 4-20 mA current loop transmitter power supply has sufficient compliance voltage to support the IDE20 voltage drop (1.5 Vdc standard, 4.5 Vdc with backlight) in addition to loop cable resistance and transmitter minimum operating voltage.
Height Display Mode (HB): The HB option formats level readings into standard feet and inches (e.g. 12FT 06IN) with an intuitive 20-segment visual tank level bargraph.
Front keypad allows on-the-fly zero/span calibration and peak min/max reset without opening enclosure doors.
Solid-state relay outputs provide chatter-free switching with configurable hysteresis and time delay.
CE compliant with built-in EMI, RFI, and ESD shielding for reliable operation near high-power variable frequency drives.
